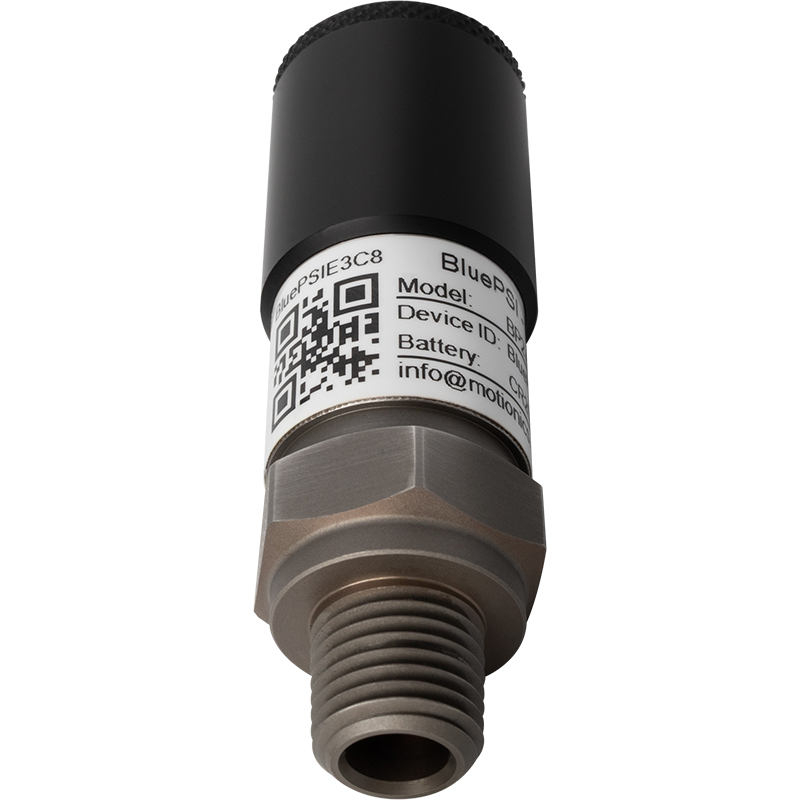

BluePSI Is A Bluetooth 4.0 Wireless Pressure And Temperature Sensor With High Accuracy, Long Battery Life, And An Ip67 Rating, Giving It A High Resistance To Dust And Water It Enables Continuous Monitoring Across Multiple Locations Simultaneously And Connects Withios, Android, And Windows Devices, Eliminating The Need For Hard Wiring And Manual Data Logging.
Applications:
Monitoring Hydraulic And Pneumatic System Pressures
Diagnosing Pressure Fluctuations In Industrial Machinery
Remote Pressure Testing During Servicing Or Shutdowns
Common Specifications
Accuracy: ?0.25% Of Full Scale
Proof Pressure: 2X Measurement
Range
Burst Pressure: 5X Measurement
Range
Transmission Range: Up To 35M
Wireless Data Rate: Up To 10 Samples/Sec
Ambient Operating Temperature: -20 To 85 ?C
Media Temperature 125 ?C
Temp Measurement Range: -20 To 85?C ?3?C
Battery Life: 2 Years At 5-Second Interval
With Cr2050
Battery Type: Cr2050/Cr2032
Port Thread: ?-18Npt
Device Connection
For Ios, Up To 14 Gauges Can Be Simultaneously Connected.
For Android, Up To 8 Gauges Can Be Simultaneously Connected.
For Windows Pc, Up To 8 Gauges Can Be Simultaneously Connected To A Single Dongle. More Dongles Can Be Added At The Same Time To Increase Connection Capacity.
Data Logging
Along With Streaming Real-Time Readings, BluePSI2-Xxx-02 Models Log Data Internally. Users Can Simply Start Data Logging On The Device And Come Back Later To Fetch Data Logged In Onboard Memory All At Once In A Batch. The Data Logging Feature Provides A New Solution For Use Cases Where It?S Inconvenient To Leave A Receiving Smart Device Or Pc, Or It?S Difficult To Maintain A Connection Throughout The Data Collection Session
Pressure Range Model Number
Transducer Error
Data Logging
Temp.
Measurement
100 Psi Bp2-100-01
Bp2-100-02 ? 0.25 Psi No
Yes Yes
1,000 Psi Bp2-01K-01
Bp2-01K-02 ? 2.5 Psi No
Yes Yes
5,000 Psi Bp2-05K-01
Bp2-05K-02 ? 12.5 Psi No
Yes Yes
10,000 Psi Bp2-10K-01
Bp2-10K-02 ? 25 Psi No
Yes Yes
15,000 Psi Bp2-15K-01
Bp2-15K-02 ? 37.5 Psi No
Yes Yes
