Diffusion Abrasion Sleeve (DAS) - HNA Group Pty Ltd - Australian Engineered Safety Solutions

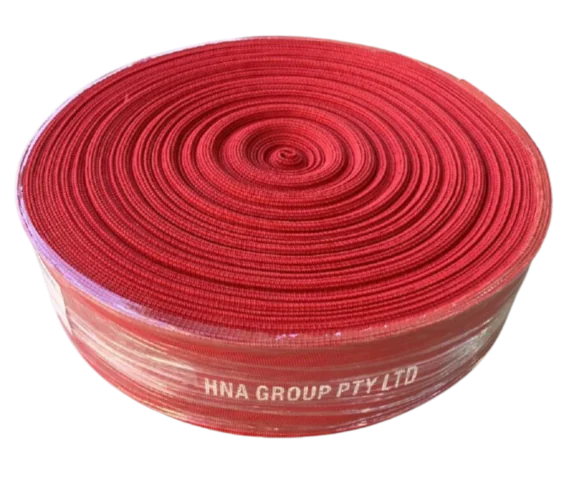

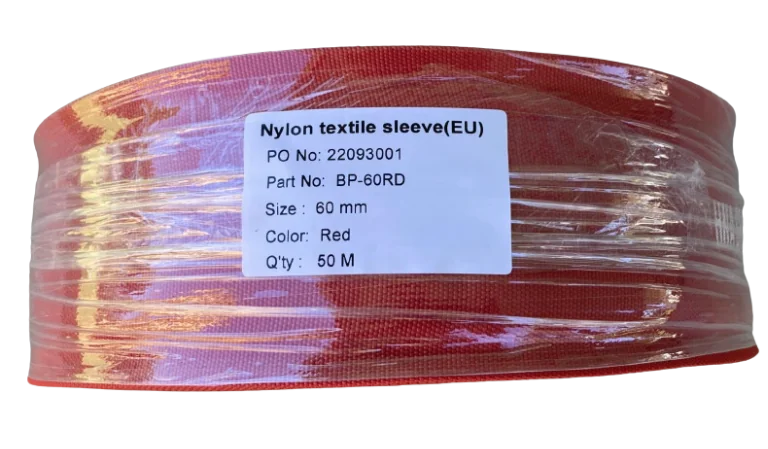

Diffusion Abrasion Sleeve (DAS)

Experience the pinnacle of textile sleeve technology with our Diffusion Abrasion Sleeve (DAS). Unveiling a new standard in compactness, strength, and durability, this specialized sleeve is meticulously engineered to elevate the protection of your equipment.

The DAS is crafted from continuous nylon fiber treated through a unique de-aering process. This process removes air from the textile fibers, causing a controlled 5% shrinkage. This meticulous technique ensures unparalleled compactness and strength, setting the foundation for reliable and robust protection.

With rigorous testing, the DAS has successfully passed the following:
Abrasion Test (ISO 6945), Fire Resistance (USMSHA), Electrical Conductivity (ISO 8031), and Oil Retention (SAE J 343, 4.4).

It is important to note that the Diffusion Abrasion Sleeve (DAS) is a diffusion device and is NOT A BURST SUPPRESSION DEVICE.

Diffusion Abrasion Sleeve (DAS)

Key Features

Streamlined Design

The DAS boasts a remarkably dense construction without compromising on bulkiness, offering a perfect balance of protection and efficiency.

Unparalleled Abrasion Resistance

Equipped with exceptional abrasion resistance, the DAS safeguards your equipment from wear and tear in the harshest of environments.

Expansion Resilience

With a high degree of expansion resistance, the DAS maintains its protective integrity even under pressure and strain.

Leakage Prevention

The advanced design of the DAS effectively reduces concentrated stream pinhole leaks, enhancing operational safety and minimizing disruptions.

Leak Containment

The DAS excels in containing potential leaks, ensuring that your equipment stays operational and reducing potential damage.

Smooth and User-Friendly

The sleek surface of the DAS allows for easy sliding onto hoses, even over extended lengths, streamlining installation and maintenance procedures.

Specifications

Working Temp	-40°C to +100°C (130°C for a short time)
Melting Point	+210°C to +220°C
Material	Polyamide 6
Colour	Black or Red
Dimensional Stability	Great resistance to sun, atmospheric agents and ageing.
Toxicity	Non Toxic
Abrasion (ISO 6945)	Showed a resistance life of over 50,000 cycles.
Leakage (SAE J343)	Sleeve withstood a pressure of 8 bar (116 psi) for 15 seconds
Conductivity (ISO 8031)	Resistance between 3 and 5 x10E6 ohm/metre.
Fire (USMSHA)	Approved by USMSHA for the use in mines. Approval No. IC-207/01.
Pinhole Test	Sleeve contained the sharp stream (pre-drilled 0.8mm of hydraulic oil passing through the hole in hose) hole when the pressure was raised to 800 bar (11603 psi), and held for 1 minute.

BHP Management of Change Approved Tooling

BHP Management of Change Approved Tooling. BHP's Management of Change (M.O.C.) includes how to identify, evaluate, approve, document, communicate, and monitor changes.

Australian Veteran

Owned Business

We're a Veteran-Founded company that manufactures high pressure fluid injection prevention tooling for the mining, oil, gas, marine, agricultural and construction industries.

MDG 41 and Recognised Standard

23 Compliance

Products are compliant with N.S.W. Mining Design Guideline (MDG-41): Fluid Power Safety Systems and Q.L.D. Recognised Standard (RS 23): Fluid Power Safety in Coal Mines.
