Tyre Handler PTZ Camera System
Designed, developed, manufactured and patented by HNA Group. Proven across BHP sites in Central Queensland — now available to the open market.
Key Features
Full PTZ Control from the Cab

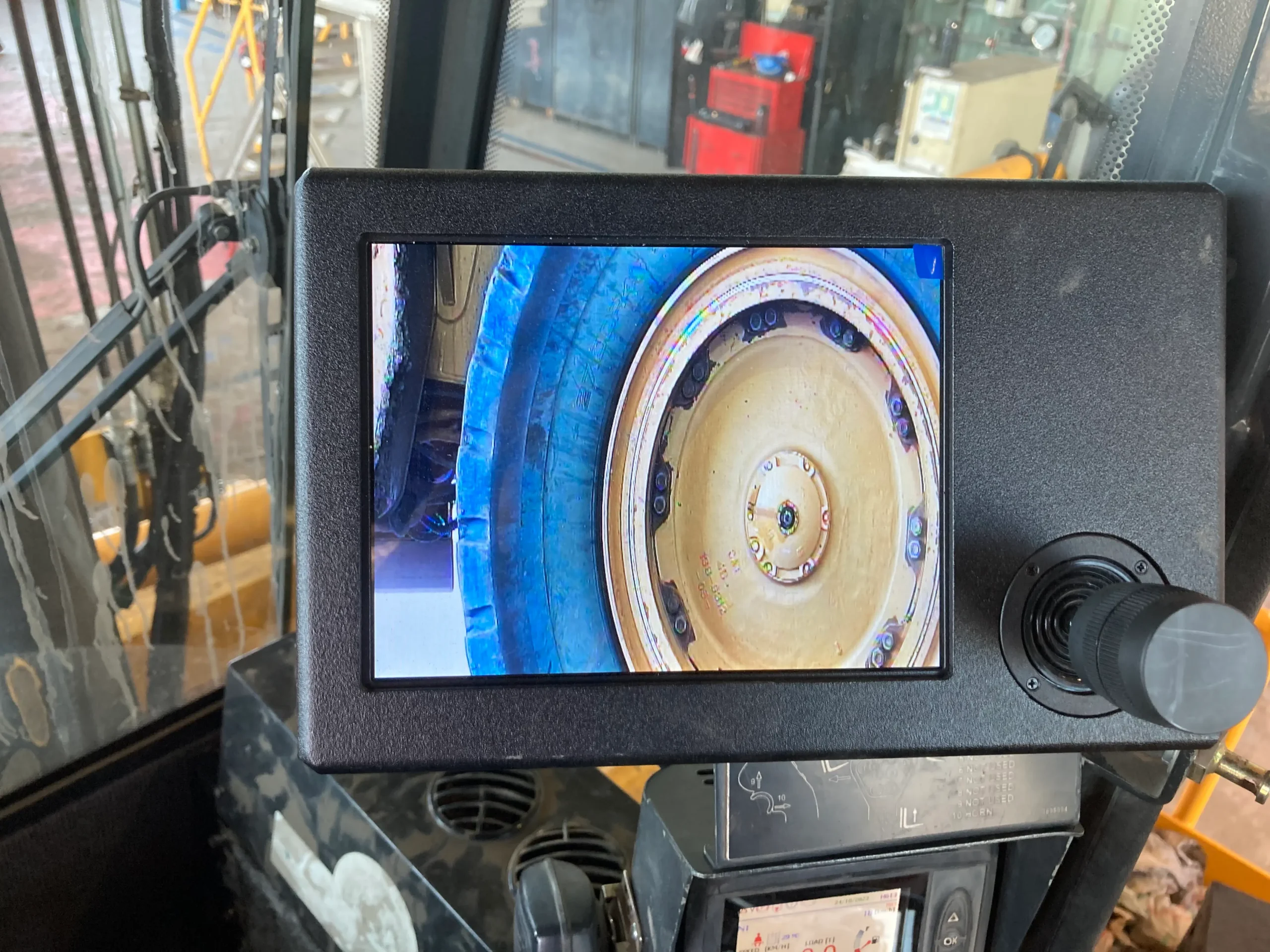

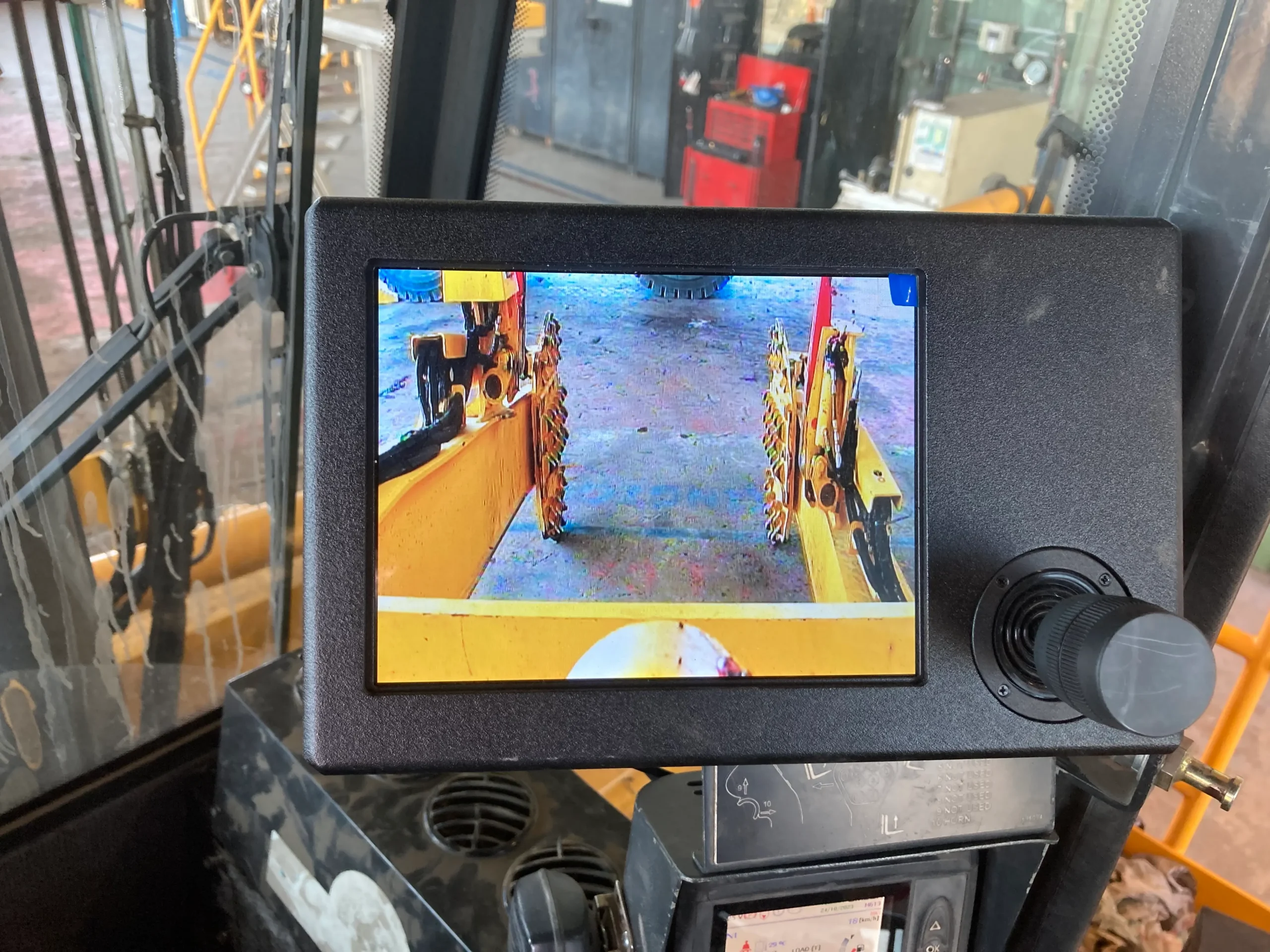

Pan, tilt and zoom with auto focus, plus infrared capability for dark areas. All camera functions controlled by a single joystick. Large screen mounted in the cab for clear visibility.

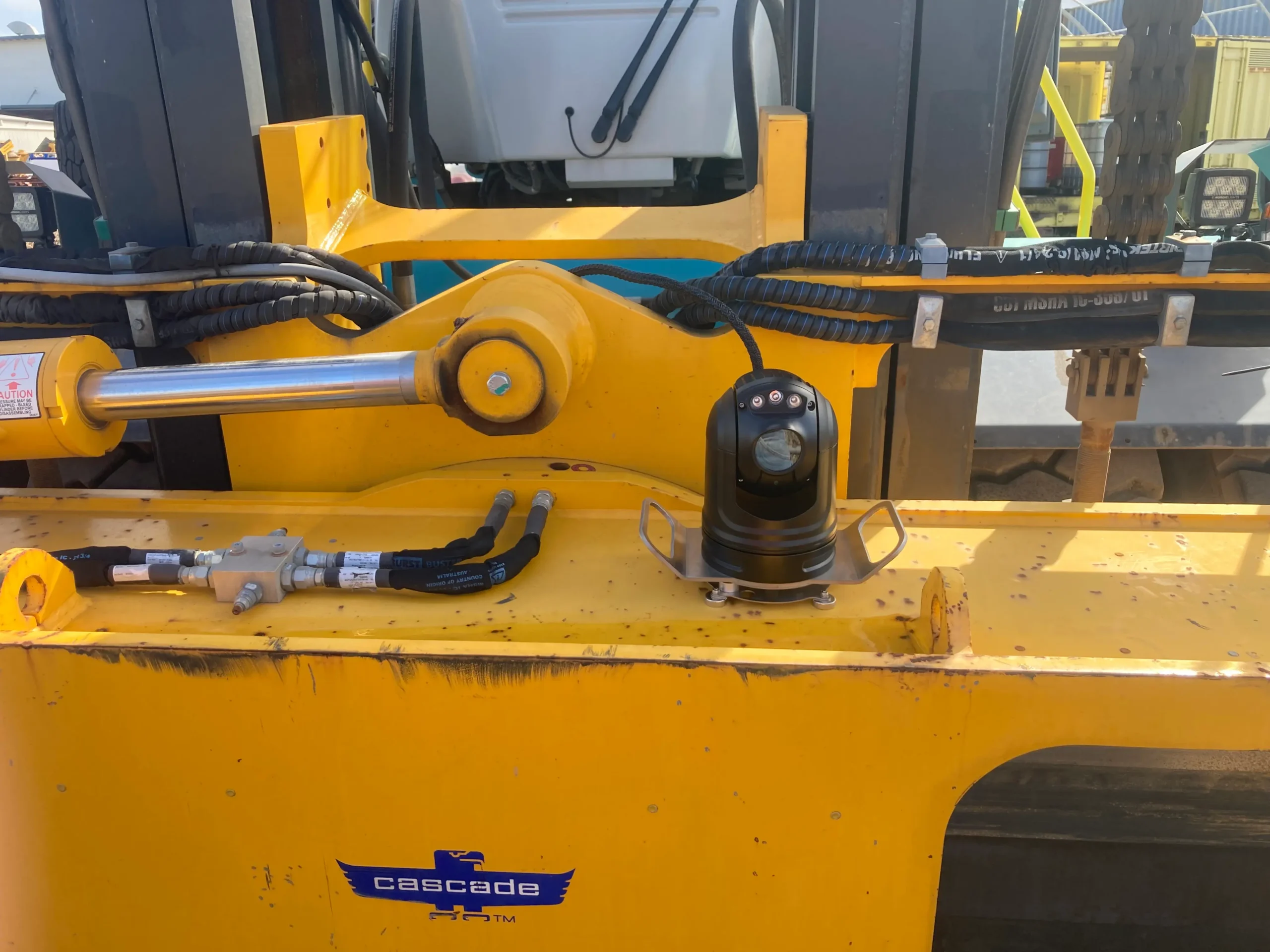

Magnetic Base for Flexible Positioning
Magnetised base allows quick repositioning to the optimal angle for tyre fitting or bead breaking — no tools required.
Mine Site Ready Construction
Vibration dampening mounts, water and dust proof, rugged powder coated aluminium housing for screen and joystick. Heavy duty braided harness with Deutsch connectors.
Simple Key-On Activation
Wired into the 24V accessories circuit — powers up automatically with the machine key. One button on screen for on/off only. Camera stays live during normal machine operation.
Quick Installation
Terminate the braided harness ends and locate a 24V accessories circuit. Estimated 4–6 hours for 2 tradesmen. Harness runs with OEM hoses over the mast sheeve.
Applications
- OTR tyre bay operations on heavy mining equipment
- Tyre handler tyre fitting and mounting
- Bead breaking operations requiring line-of-sight to tyre grab
- Multi-site mining operations
- Any tyre handler where operator visibility is limited
Specifications
| Camera Type | Modified PTZ with Pan / Tilt / Zoom and auto focus |
|---|---|
| Infrared | Yes — capable of operating in dark areas |
| Power Input | 24V accessories circuit |
| Activation | Key-on / key-off automatic |
| Screen Housing | Powder coated aluminium, rugged |
| Camera Mount | Magnetic base with stainless steel handle and vibration dampening |
| Harness | Custom braided, Deutsch connectors |
| Installation Time | 4–6 hours (2 tradesmen) |
| Field Tested | 6-month field trial; deployed across BHP CQ sites |
