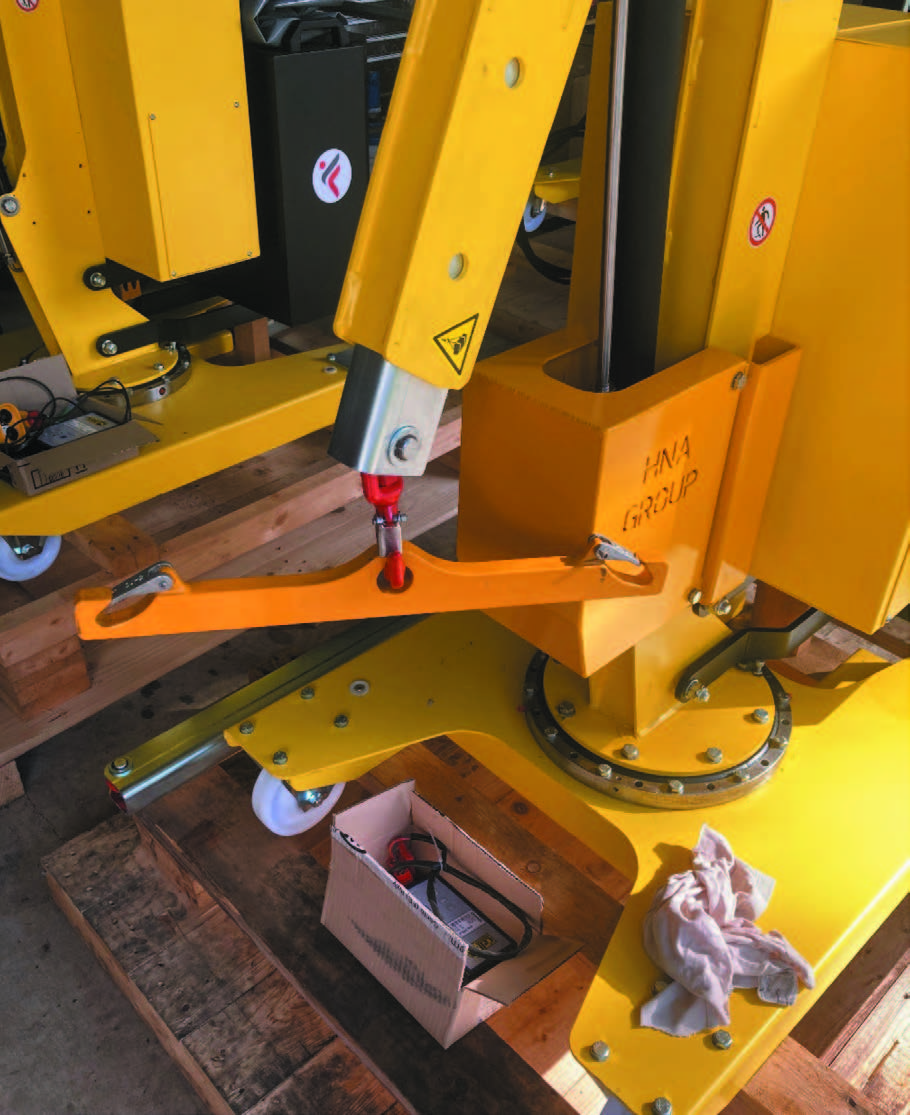

Battery Powered Workshop Swivel Crane
Designed, developed, manufactured and patented by HNA Group. Lifts up to 200kg with 360° rotation — the smallest frontal footprint on the market.
Key Features
360° Rotation with Locking
Rotates freely or locks every 30° via slewing ring at the base of the column. Two handles for smooth, easy rotation. Swivel hook with safety lock included.
Smallest Footprint on the Market
Frontal footprint of only 780mm — the smallest available. Manoeuvrable via 2 pivoting high-capacity wheels with bumper supports and parking brakes, plus 2 fixed front wheels with bearings.
Electrically Operated Arm
Raising and lowering is fully electrical at adjustable speed via 2 controls on the hand control. Emergency stop also included on the hand control.
Hydraulic Safety System
Block valve prevents load from falling in the event of accidental hose rupture. Relief valve prevents the crane from being overloaded.
Extendible Arm — 4 Positions
Arm extends in 4 positions. 3 optional arm extensions available, increasing overhang to a maximum of 2050mm.
Battery Powered with Multifunction Display
Powered by lead acid battery; AGM sealed or Lithium battery options available. Display shows charge level, battery voltage and operating hours. External battery charger included.
Applications
- Heavy industry workshop maintenance
- Mining equipment servicing
- Battery lifting and handling
- Workshop environments requiring crane-free overhead lifting
- Confined workshop spaces where overhead cranes aren't practical
Specifications
| Model | 01B2 |
|---|---|
| Max Lift Capacity | 200kg |
| Rotation | 360° free rotation; lockable every 30° |
| Frontal Footprint | 780mm |
| Max Arm Overhang | 2050mm (with extended jib) |
| Arm Extension Positions | 4 |
| Power Source | Lead acid battery (AGM or Lithium options available) |
| Arm Operation | Electrically operated, adjustable speed |
| Chassis | Stove-enamelled steel with 2 forklift supports |
| Wheels | 2 pivoting high-capacity + 2 fixed front wheels |
| Compliance | Australian Standards; Engineering sign-off prior to delivery |
| Supplied With | Extended Jib; Battery Lifting Jig (in custom guard) |
