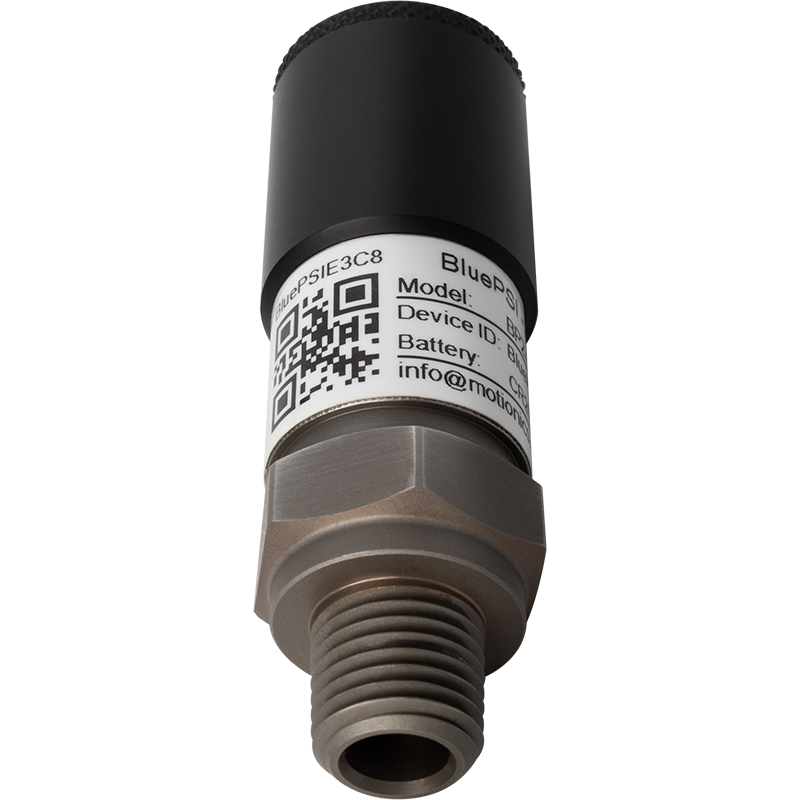

BluePSI BP210001

BluePSI Is A Bluetooth 4.0 Wireless Pressure And Temperature Sensor With High Accuracy, Long Battery Life, And An Ip67 Rating, Giving It A High Resistance To Dust And Water It Enables Continuous Monitoring Across Multiple Locations Simultaneously And Connects Withios, Android, And Windows Devices, Eliminating The Need For Hard Wiring And Manual Data Logging.

Applications:

Monitoring Hydraulic And Pneumatic System Pressures
Diagnosing Pressure Fluctuations In Industrial Machinery
Remote Pressure Testing During Servicing Or Shutdowns
Common Specifications
Accuracy: ?0.25% Of Full Scale

Proof Pressure: 2X Measurement
Range

Burst Pressure: 5X Measurement
Range

Transmission Range: Up To 35M

Wireless Data Rate: Up To 10 Samples/Sec

Ambient Operating Temperature: -20 To 85 ?C
Media Temperature 125 ?C

Temp Measurement Range: -20 To 85?C ?3?C

Battery Life: 2 Years At 5-Second Interval
With Cr2050

Battery Type: Cr2050/Cr2032

Port Thread: ?-18Npt
