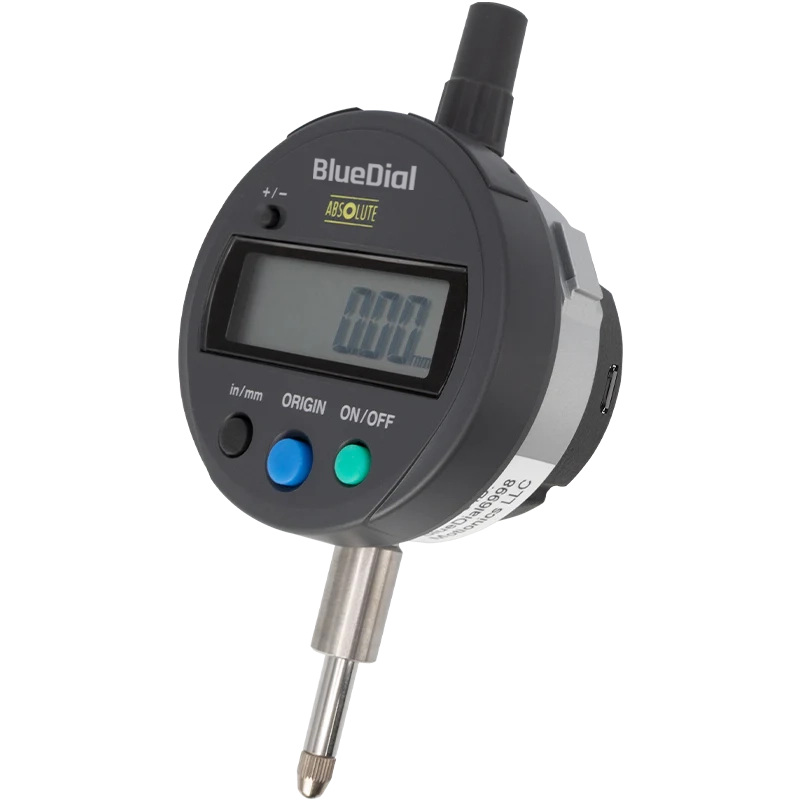

A High-Accuracy Mitutoyo Indicator That Combines Absolute Measurement For Deflection Applications, High Resolution And A High-Quality Build With An Integrated Motionics Bluetooth Transmitter. The BlueDial Allows You To Safely And Efficiently Record Deflection Measurements Wirelessly On Your Ipad, Iphone, Android Device, Or Windows Pc, While Eliminating The Hassle Of Cables And Wires.

Applications:

Measuring Deflection In Slewing Bearings On Large Excavators Or Cranes.
Monitoring Structural Movement In Machine Frames During Load Testing.
Capturing Runout On Rotating Shafts Or Face Plates In Mining And Heavy Industry.
Device Connection
For Ios, Up To 14 Gauges Can Be Simultaneously Connected.

For Android, Up To 8 Gauges Can Be Simultaneously Connected.

For Windows Pc, Up To 8 Gauges Can Be Simultaneously Connected To A Single Dongle. More Dongles Can Be Added At The Same Time To Increase Connection Capacity.

Comparison Table
BlueDial-783 BlueDial-793
Measuring Range 12.7 Mm 12.7 Mm
Resolution 0.01 Mm 0.001 Mm
Accuracy ?0.02 Mm ?0.003 Mm
Wireless Data Rate Up To 10 Samples/Sec Up To 10 Samples/Sec
Transmission Range 35M
35M
Working Temperature 0-50 ?c 0-50 ?c
Battery Usage Life 30Hr 30Hr
